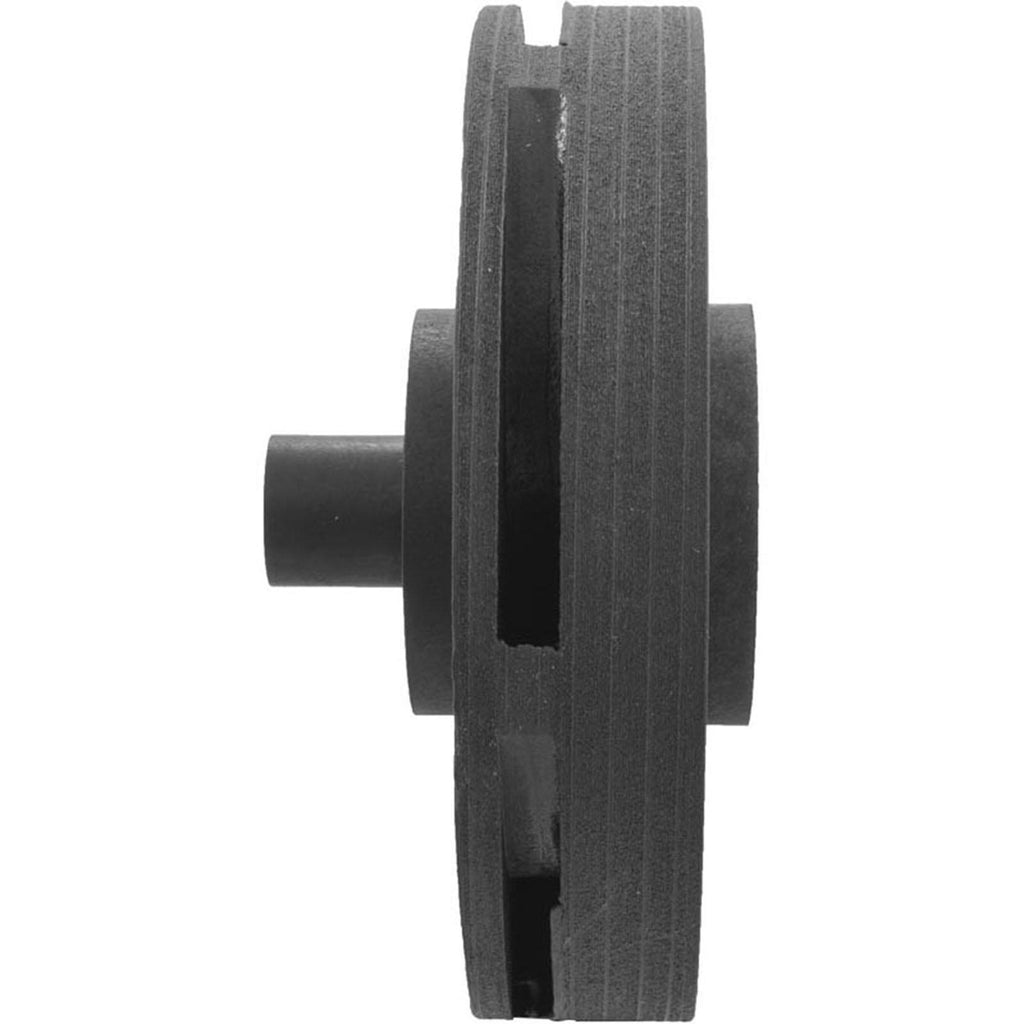

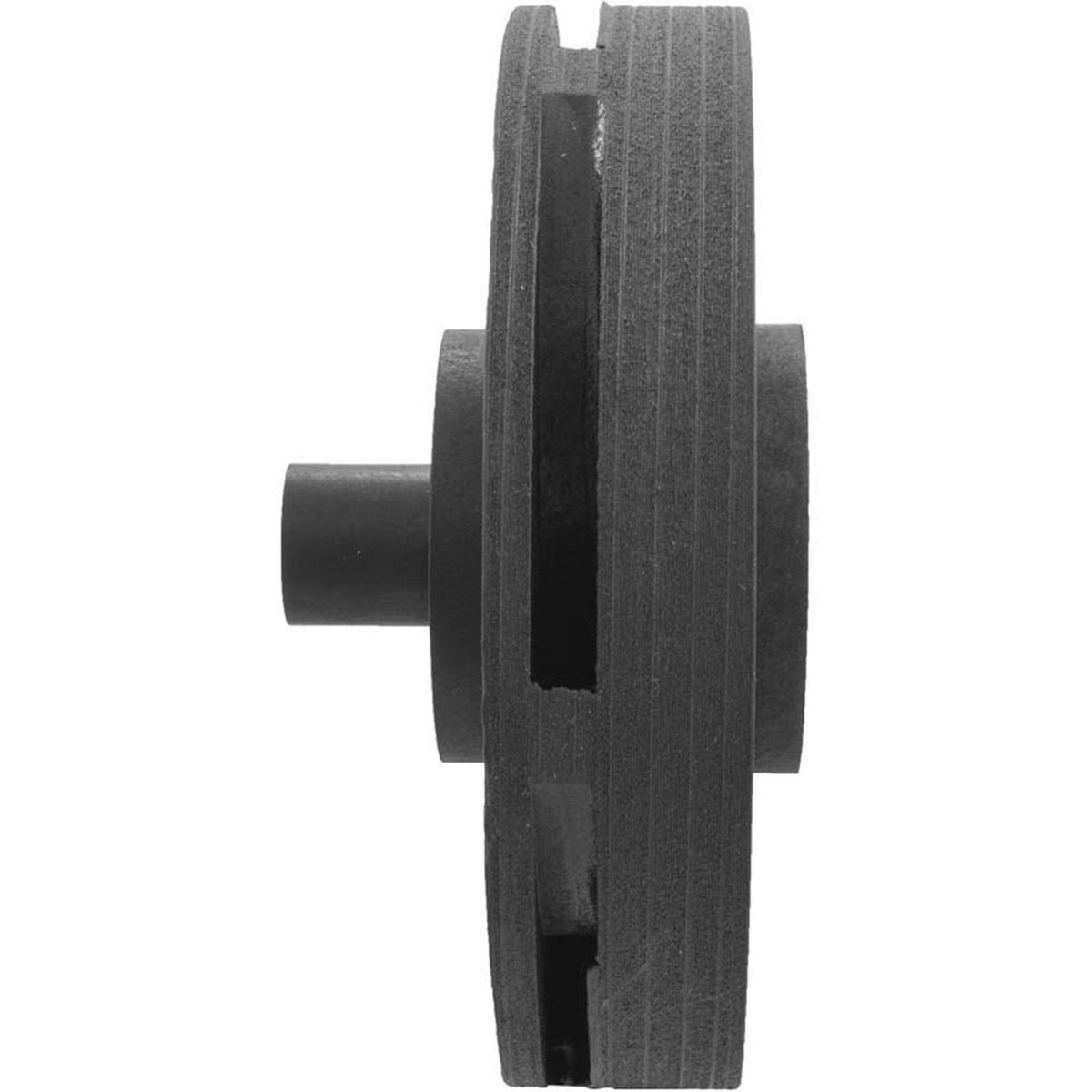

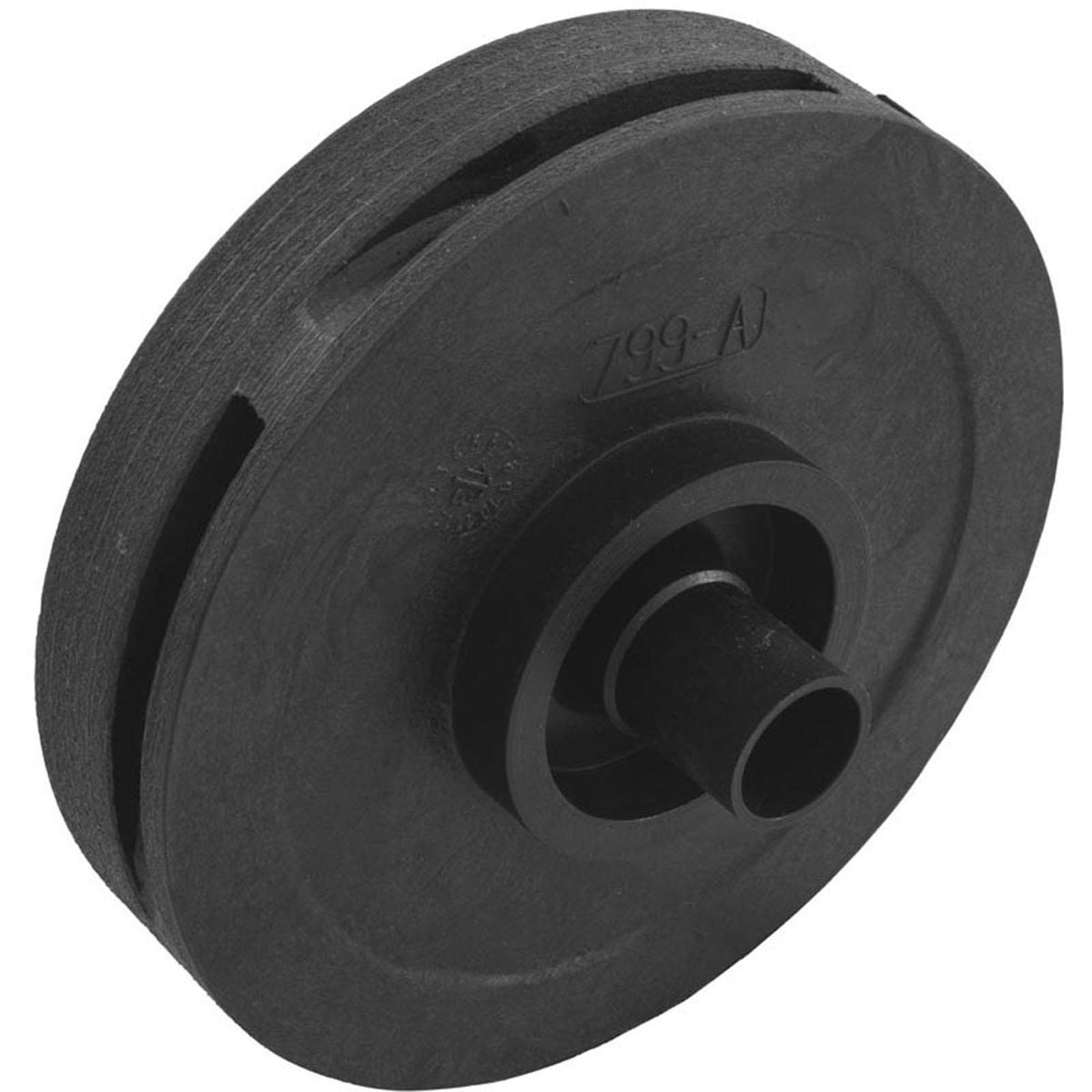

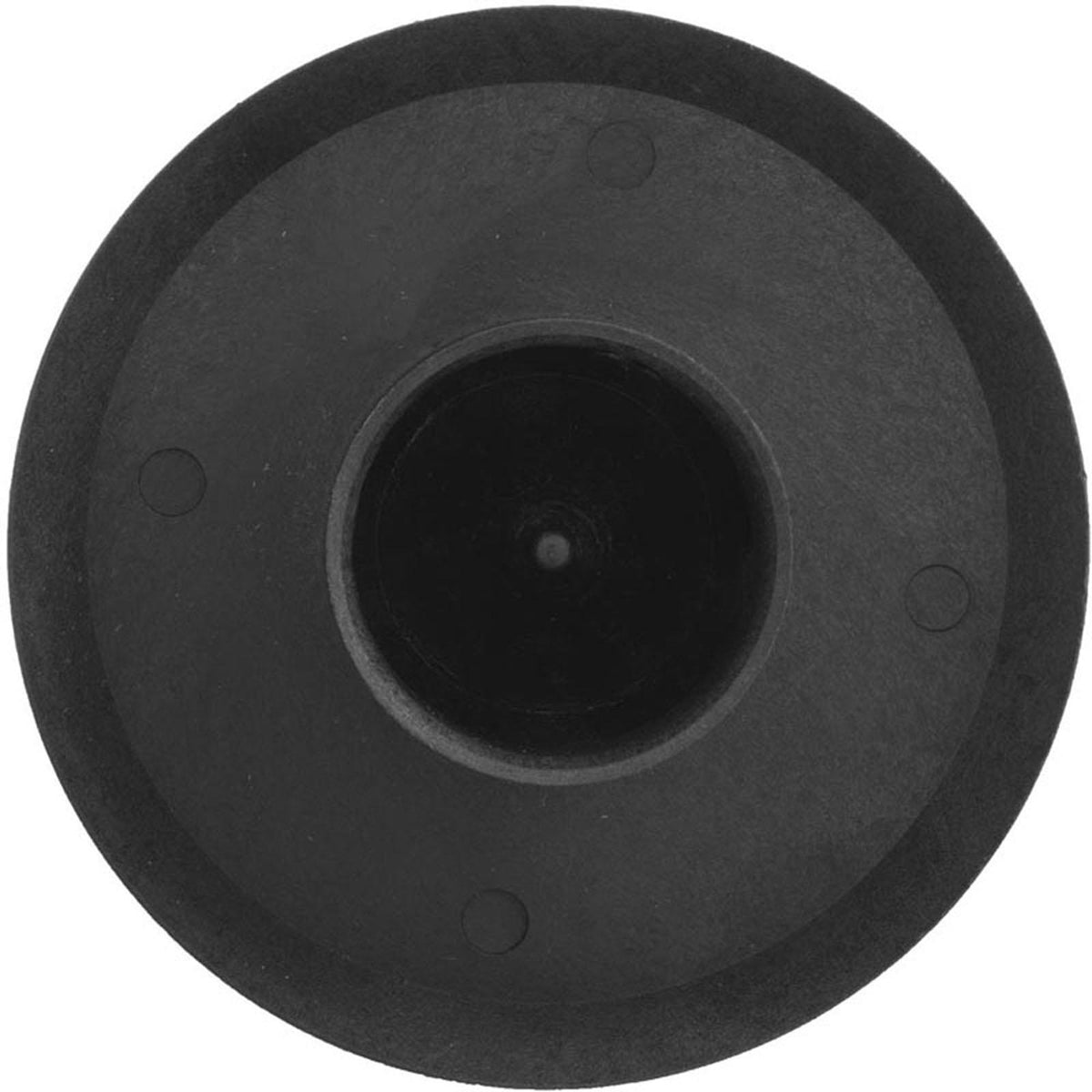

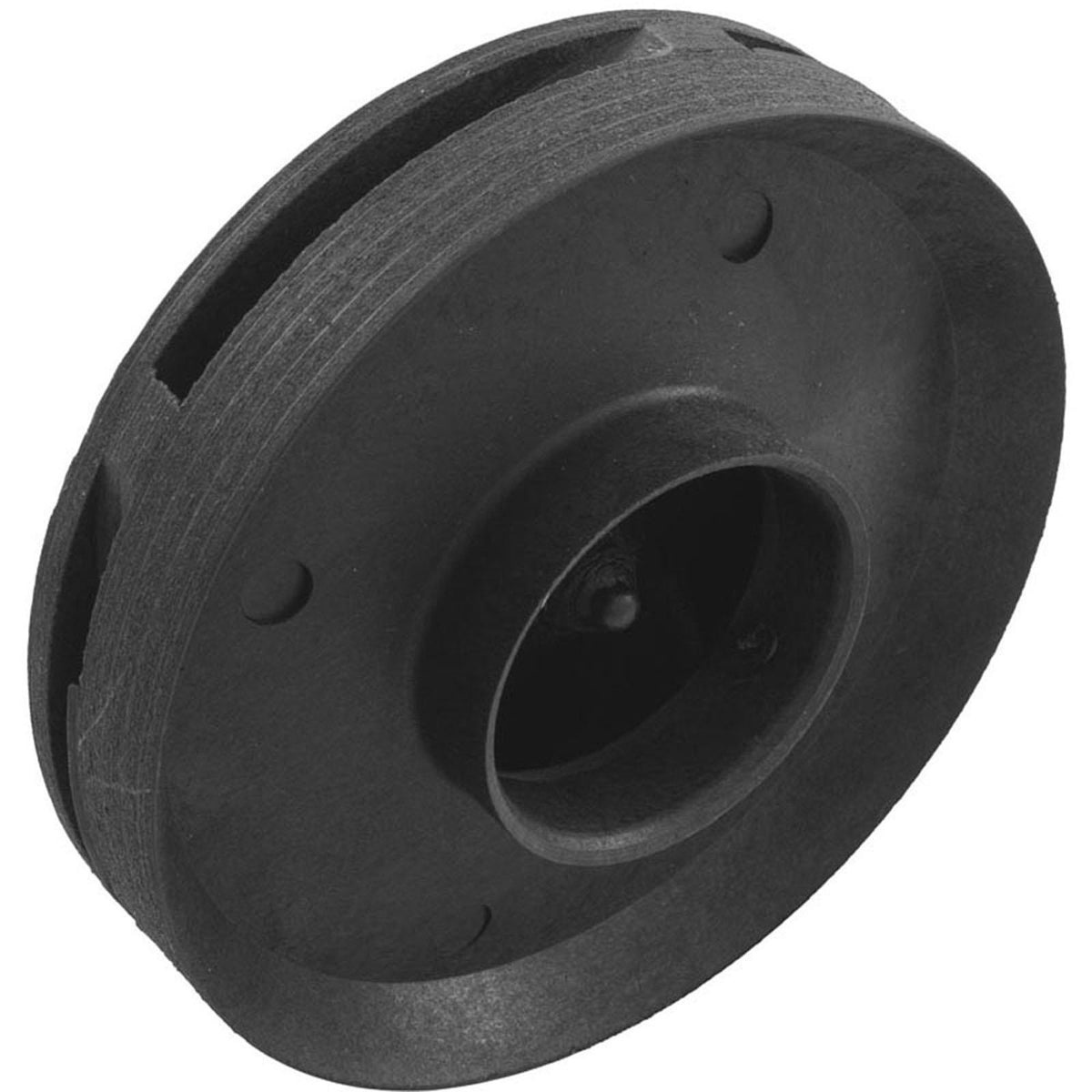

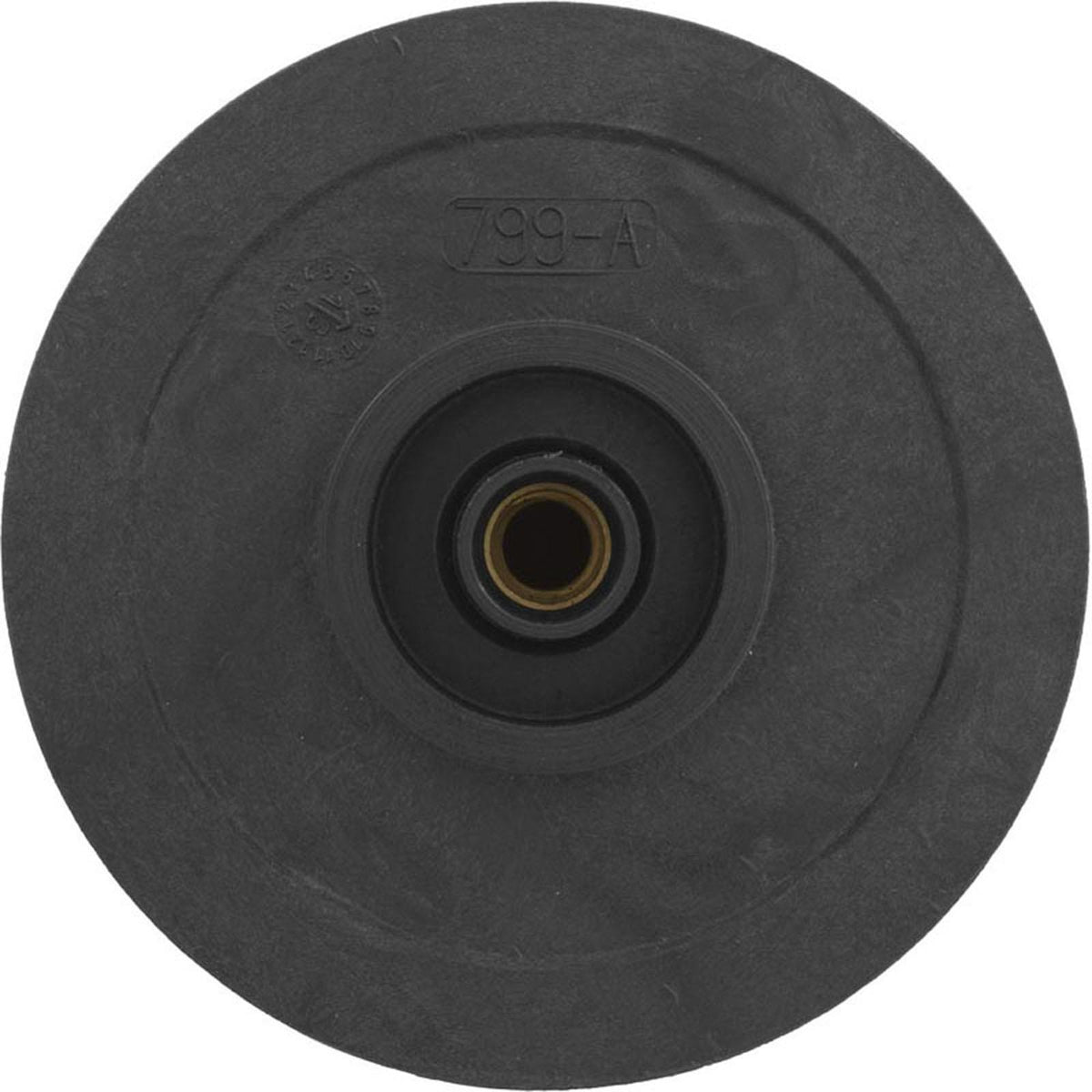

Acura Spa Impeller, Acura Spa Aquaheat, 0.75 Horsepower
$55.40
Skip to product information
Impeller, Acura Spa Aquaheat, 0.75 Horsepower
⢠Impeller Type: Closed Face
⢠Impeller Diameter OD: 3-7/8"
⢠Vane Width ID: 3/16"
⢠Eye Diameter OD: 1-5/8"
⢠Eye Length: 7/16"
⢠Impeller Width OD: 13/16"
⢠Seal Seat Depth: 5/16"
⢠Shaft Length: 9/16"
⢠Shaft Diameter OD: 5/8"
⢠Seal Seat Diameter OD: 1-5/8"
⢠Manufacturer: Acura Spa
⢠Pump Application: Aquaheat
Acura Spa Impeller, Acura Spa Aquaheat, 0.75 Horsepower
$55.40
Acura Spa Pump Impeller
Closed face impeller made for the Aquaheat spa pump by Acura Spa. Rated at 3/4hp, it is used in an Aquaheat pump wet end, and must be installed on a 3/4hp (or greater) thru bolt motor.
Product Specifications:
⢠Impeller Type: Closed Face
⢠Impeller Diameter OD: 3-7/8"
⢠Vane Width ID: 3/16"
⢠Eye Diameter OD: 1-5/8"
⢠Eye Length: 7/16"
⢠Impeller Width OD: 13/16"
⢠Seal Seat Depth: 5/16"
⢠Shaft Length: 9/16"
⢠Shaft Diameter OD: 5/8"
⢠Seal Seat Diameter OD: 1-5/8"
⢠Manufacturer: Acura Spa
⢠Pump Application: Aquaheat
