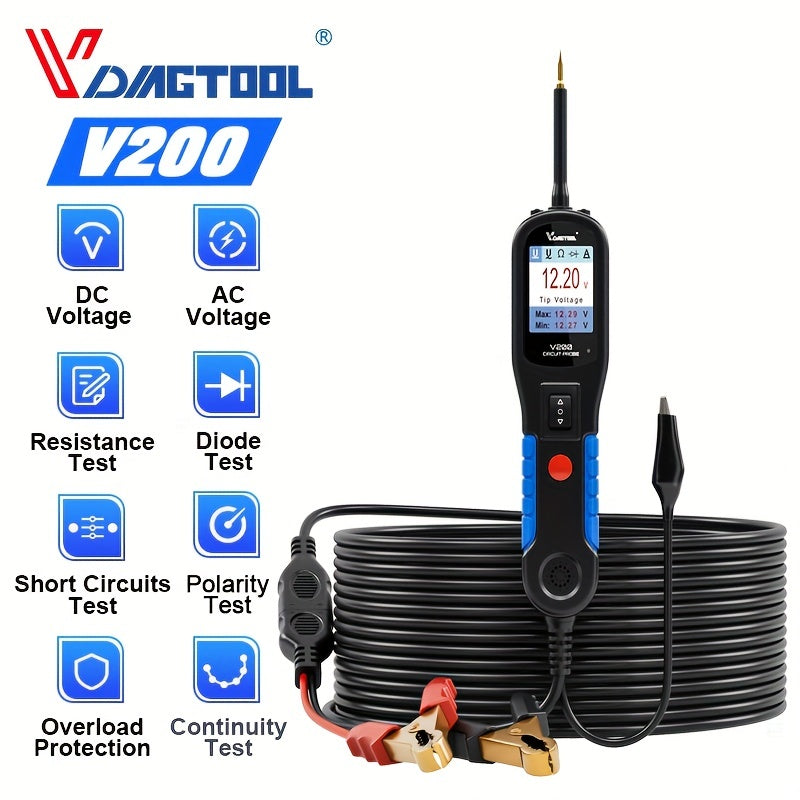

V200 Automotive Circuit Probe Teste, AC Voltage, DC Voltage, Diode Test, Resistance Check, Electrical System Test Tool, Power Circuit Tester

Power Mode:Room electrical/hard wiring

Operating Voltage:≤36V

Material:Conductive Material

VDIAGTOOL

Battery Capacity (mAh):0

Item ID:NC27298

As an universal automotive circuit tester, VDIAGTOOL V200 allows connecting to 6V-30V vehicle system for diagnosing. VoltaTest, Polarity Test, Continuity Test, Signal Circuit Test, Activating Components and any other functions by this circuit tester could help you find the problem point on the electrical system ly.

4 Testing Mode: DC voltage, AC voltage, Resistance Test, Diode Test

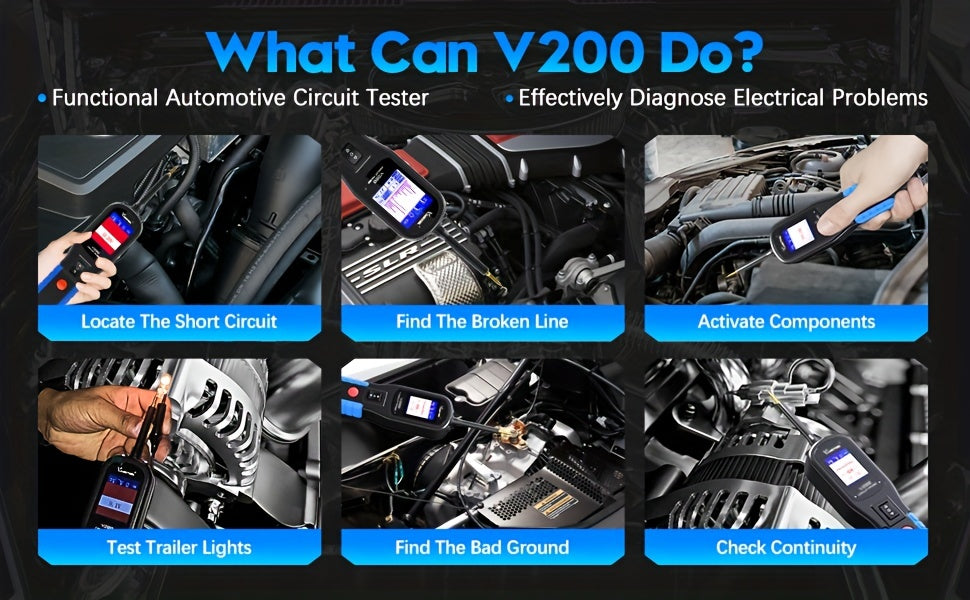

More Useful Electrical Diagnose Function: Volta& Polarity Testing, Continuity Testing, Signal Circuit Testing, Activating Components in Your Hand, Activating Components in The Vehicle, Testing Trailer Lights and Connections, Activating Components W/Ground, Following & Locating Short Circuits, Checfor Bad Ground Contacts.

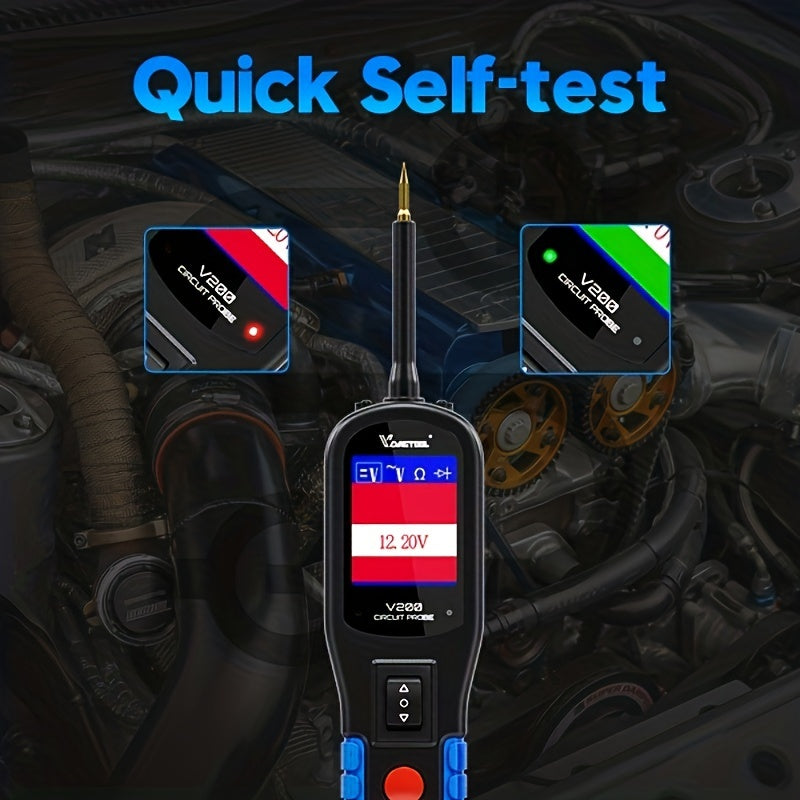

 Self-Test: Before you test a circuit or component, be sure your tool is in good order by doing a  self-test.
Current Overload Protection: V200 circuit tester is short-circuit protected. The internal circuit breaker will trip if it becomes overload.

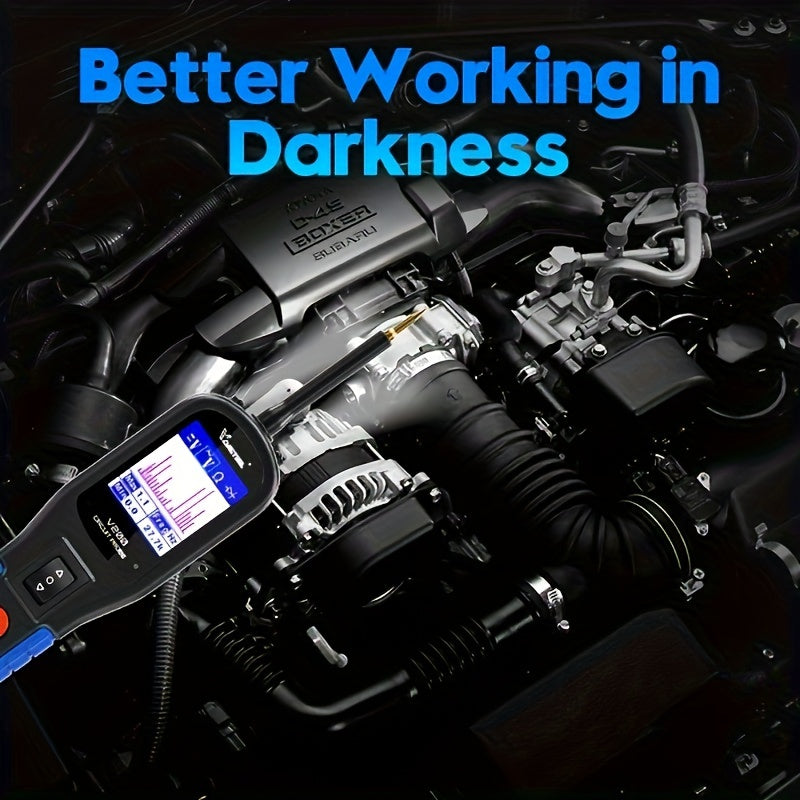

Build-in Light: Enable you work safer in the dark.
20FT Extension Cable: Covering from the front to the rear of the vehicle, you can easily inspect the entire electrical circuit system.

DC voltarange:0-65V; Resistance range: 0-100 kΩ; Rated current: 1-10 amps; Frequency response of sound passage: 0Hz to 10Khz.

️ Volta& Polarity Testing
️ Continuity Testing
️ Signal Circuit Testing
️ Activating Components in Your Hand
️ Activating Components in The Vehicle
️ Testing Trailer Lights and Connections
️ Activating Components W/Ground
️ Following & Locating Short Circuits
️ Checfor Bad Ground Contacts

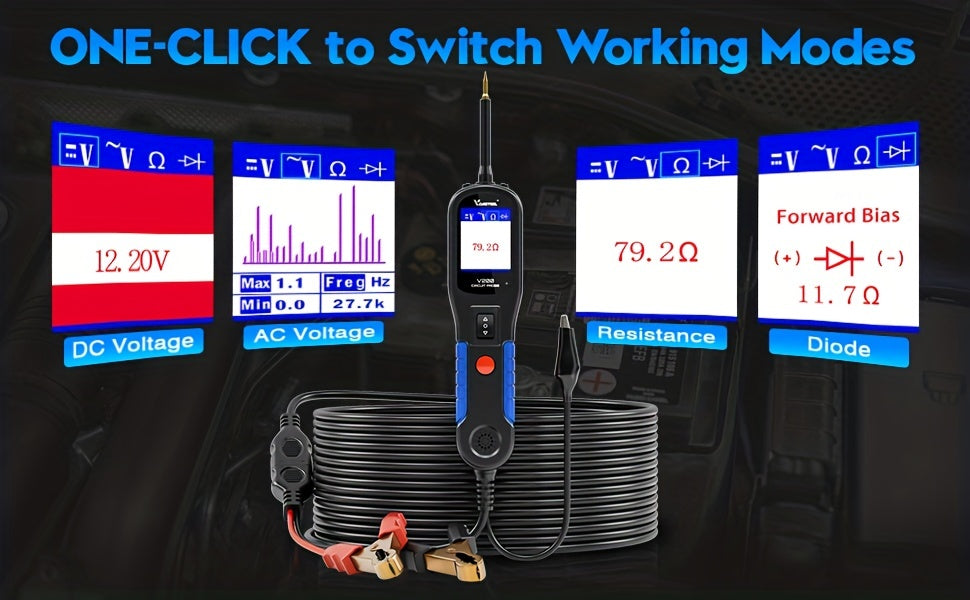

AC Voltage: While circuit tester V200 in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. Voltage, the Min. Voltaand frequency.

DC Voltage: While V200 voltadetector in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltawith a resolution of 0.1 volt.

Resistance Test: While Vdiagtool V200 in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.
Diode Test: In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltadrop, indicates the forward bias. If switch the probe tip and auxiliary ground lead, the screen will not display the volta

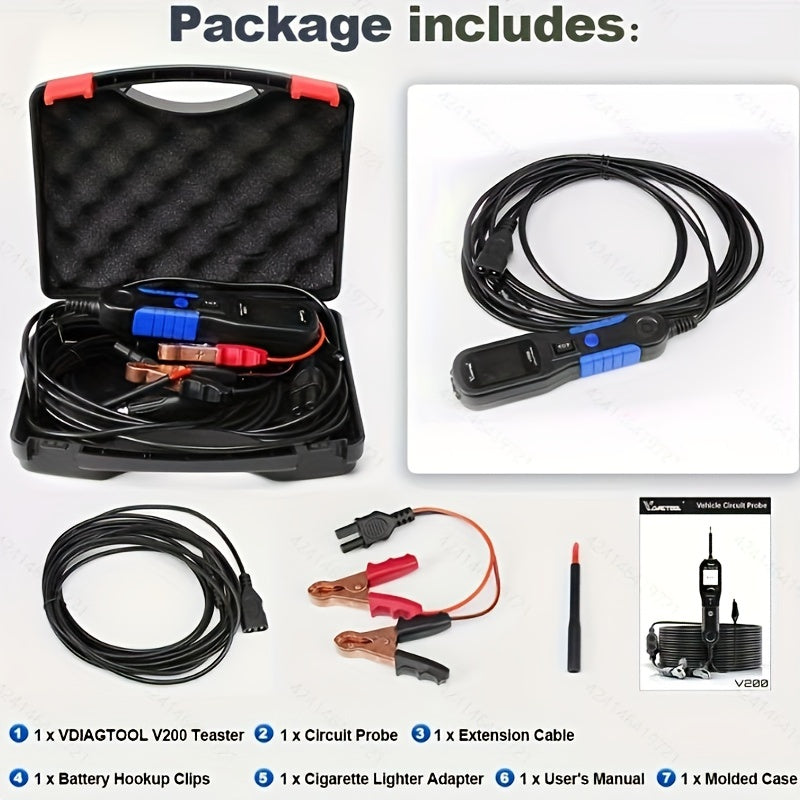

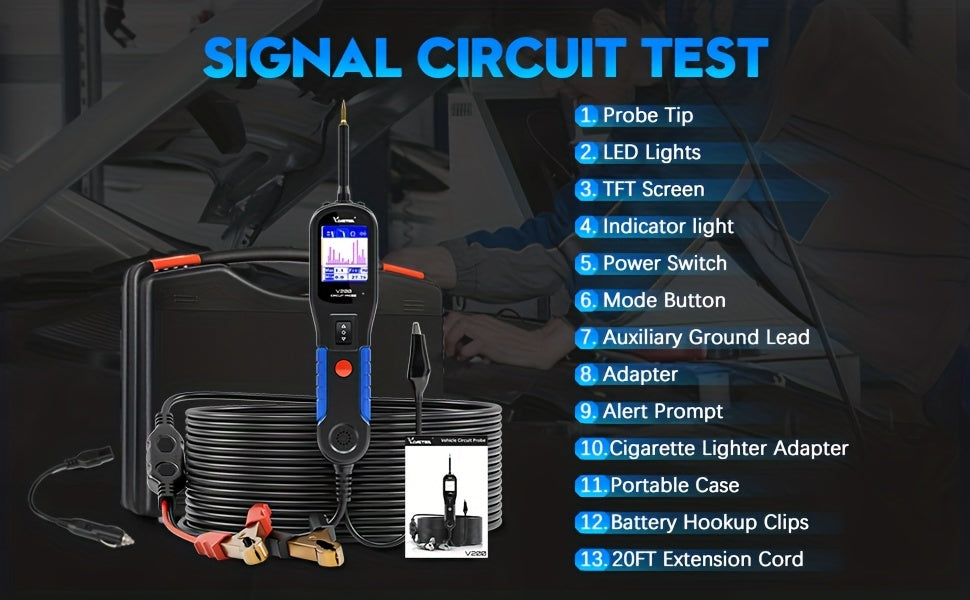

1×VDIAGTOOL V200 Electric Circuit Tester
1×Probe Tip
1×20ft Extension Cable

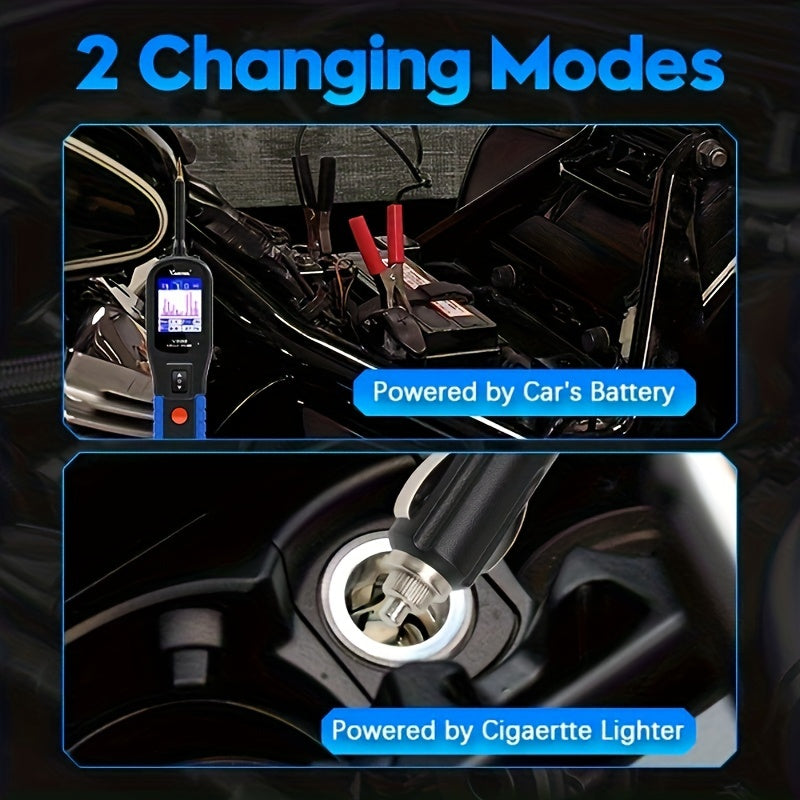

1×Battery Hookup Clips
1×Cigarette Lighter Adapter
1×User's Manual
1×Rugged Blow Molded Case
