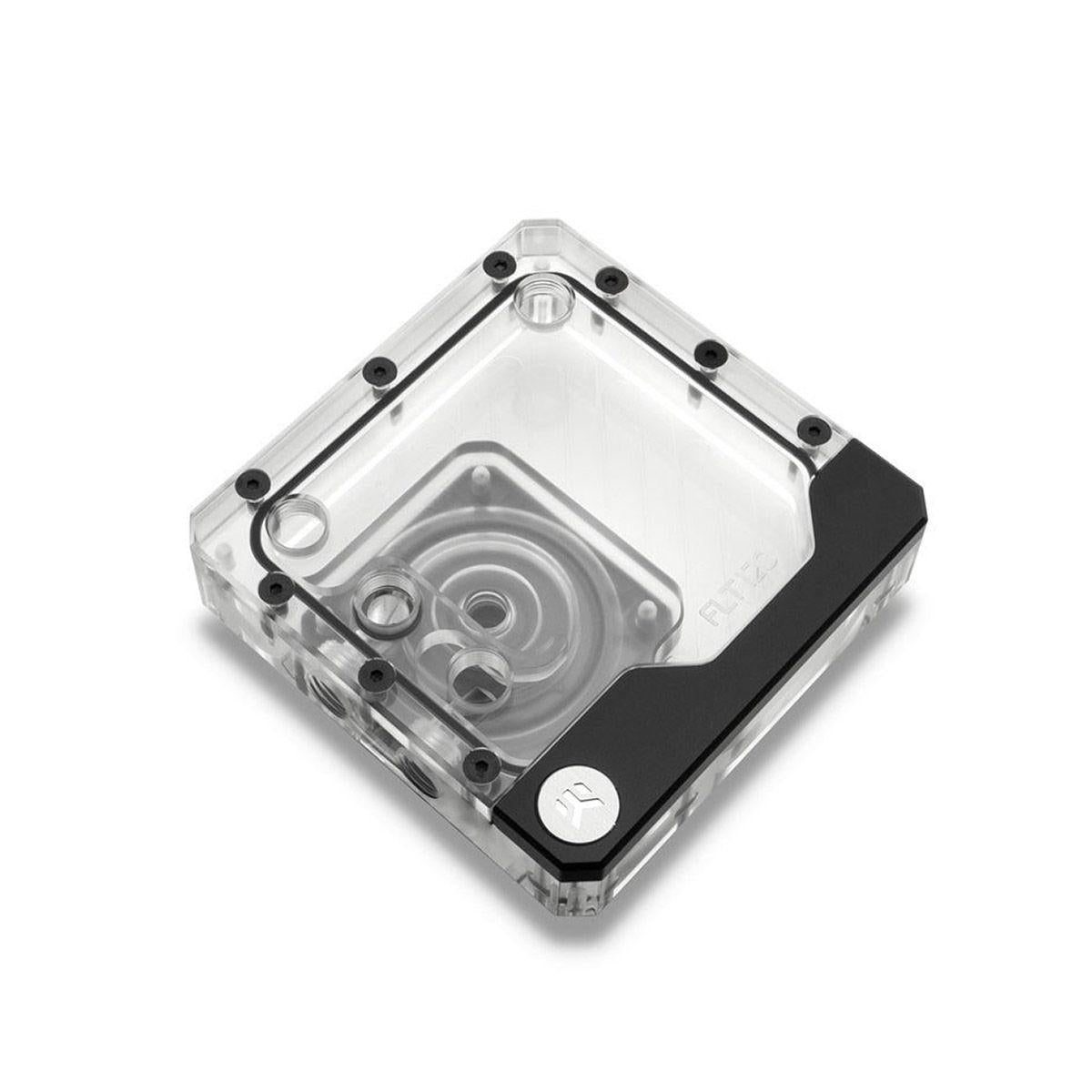

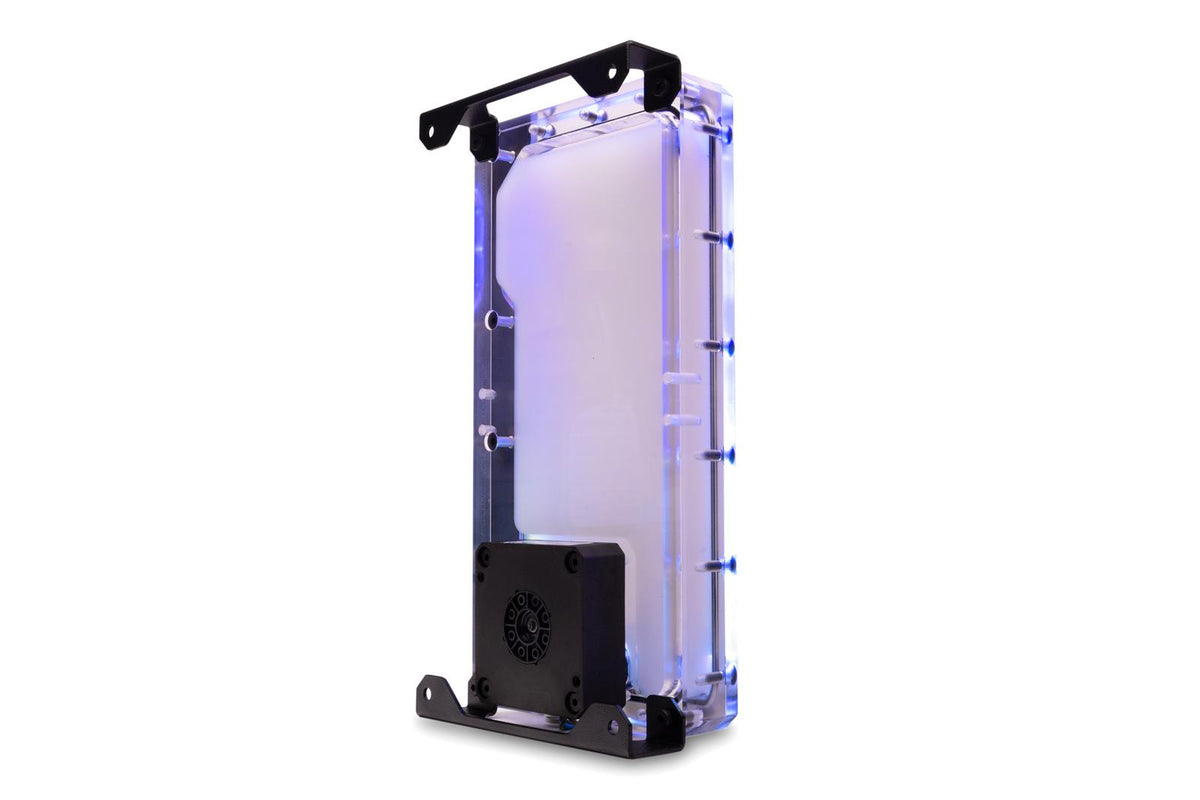

ekwb ek-quantum kinetic flt 120 pump/reservoir combo, ddc pwm, d-rgb, plexi

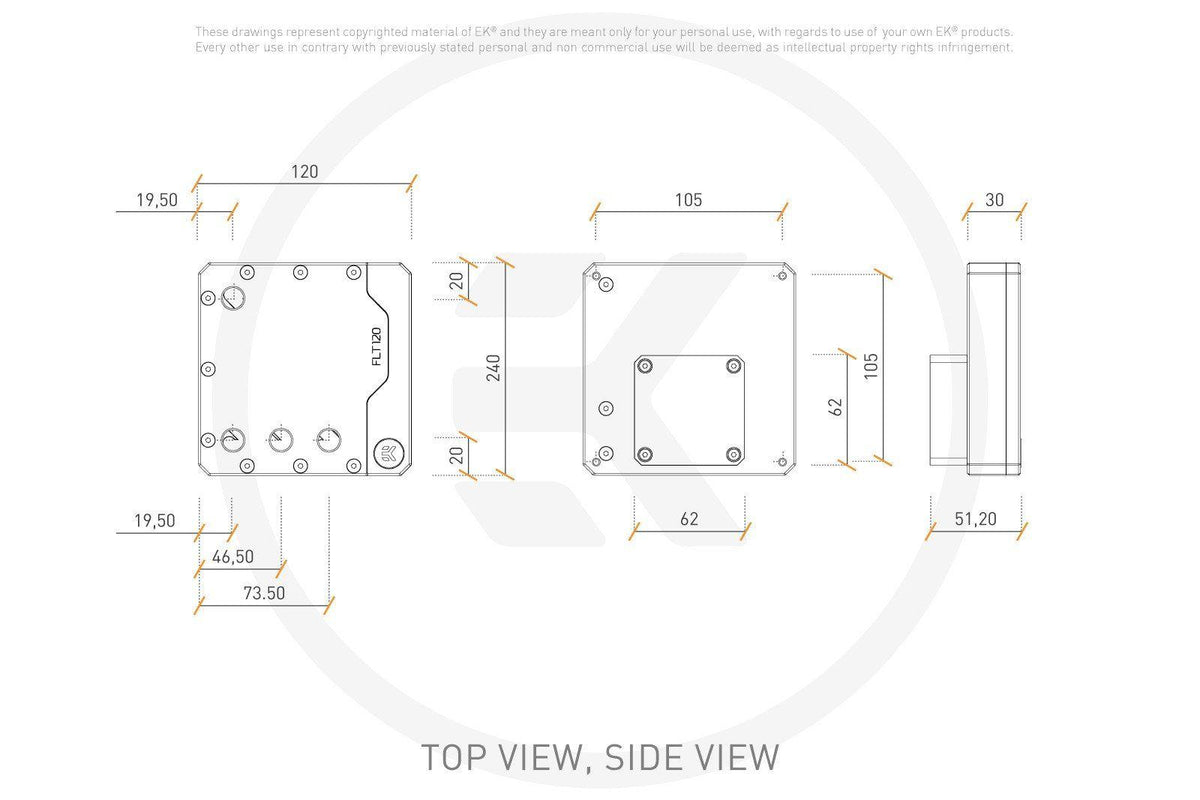

All new Flat (FLT) series EK-Quantum Kinetic FLT DDC pump-reservoir units! Each unit is featuring standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of six G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops.EK-Quantum Kinetic FLT DDC series pump-reservoir units are equipped with genuine DDC pumps, made in Europe, which are capable of delivering flow rates of 1000 liters per hour with a maximum head pressure up to 5.2 meters!Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible "LED hotspots" as possible.Technical specifications:- Size (HxWxT): 125x120x58mm (with mounting system)- Capacity: ~100ml- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)Pump electrical and mechanical properties:- Motor: Electronically commuted ball bearing motor- Rated voltage: 12 V DC- Power consumption: 18 W- Maximum head pressure: up to 5.2m- Maximum flow rate: up to 1000 L/h- Maximum liquid temperature: 60 °C- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal- Power connector: SATA Power and 4-Pin PWM FAN connectorOperational regime:- PWM duty cycle: ~ 20-100%- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is presentEnclosed:- EK-Quantum Kinetic FLT 120 PWM D-RGB- Mounting mechanism with all necessary screws for 120mm fan mounting- Pair of EK reservoir holders with mounting screws- 4 × G1/4 Plugs- 1 × Allen key for reservoir holders

Model: 3831109819753
